Brand Name : SMTCL
Model Number : V2 V4
Certification : CE ISO certification
Place of Origin : CHINA
MOQ : 1
Payment Terms : T/T,L/C,,Western Union
Supply Ability : 50 sets per month
Delivery Time : 45-60 days
Packaging Details : The wooden case,Tin trunk ,Other seaworthy packing
CNC or Not : CNC
Key word : Vertical CNC Lathe
Spindle nose type : A2-8
Output power of main motor : 15/18.5KW
Maximum swing diameter over bed : Φ500 /Φ650 mm
Maximum cutting height : 350/500mm

Product Description:

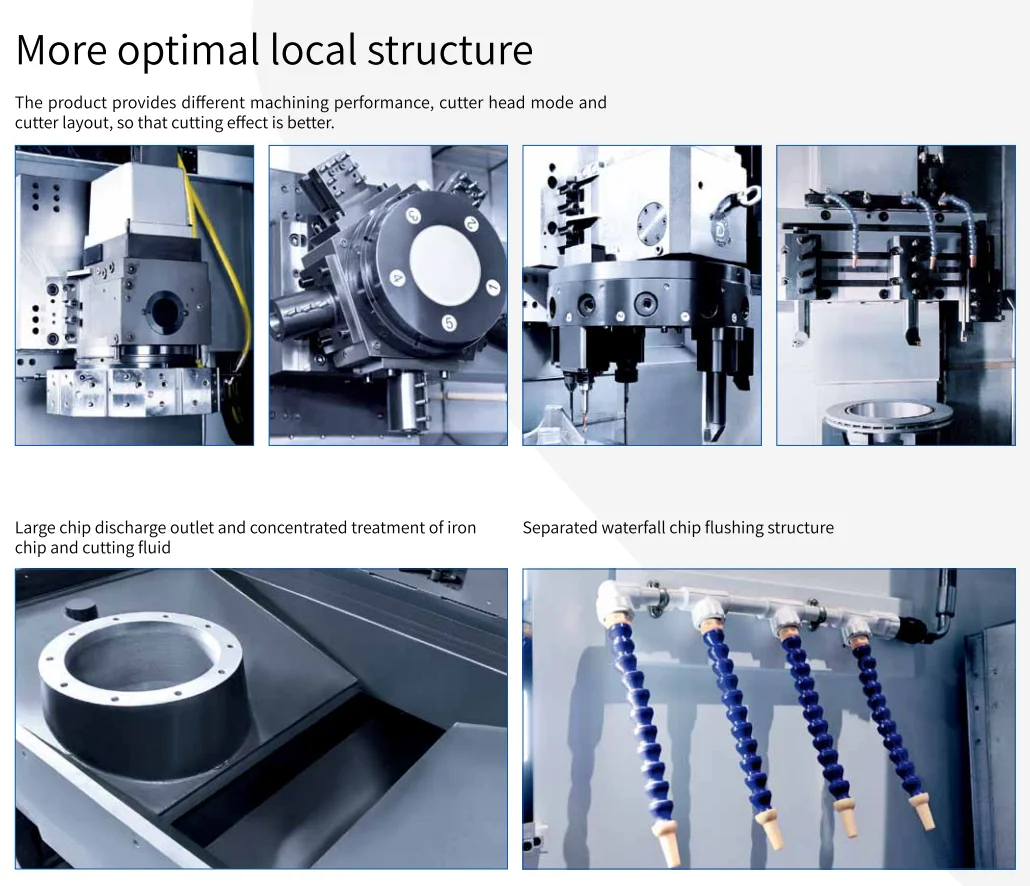

Product Features:

A,Nitrogen balance
| Item | Unit | V2S | V4C | V4S |
| Machining capacity | ||||
| Maximum swing diameter over bed | mm | Φ500 | Φ650 | Φ720 |
| Maximum cutting height | mm | 350 | 500 | 650 |
| Maximum cutting diameter | mm | Φ330 | Φ500 | Φ600 |
| Spindle | ||||
| Spindle nose type | | A2-8 | A2-8 | A2-11 |
| Spindle speed range | r/min | 50-3000 | 50-2500 | 50-2500 |
| Output power of main motor | KW | 15/18.5 | 15/18.5 | 22/30 |
| Maximum output torque of spindle | Nm | 472 β motor 530 α motor | 549 β motor 715 α motor | 1160 β motor 1169 α motor |
| Chuck diameter | inch | 10‘’ | 12‘’ | 15‘’ |
| Feeding | ||||
| X-axis rapid traverse speed | m/min | 30 | 18 | 18 |
| Z-axis rapid traverse speed | r/min | 30 | 18 | 18 |
| Travel | ||||
| x-axis travel | mm | 200 | 300 | 300 |
| Z-axis travel | mm | 400 | 520 | 690 |
| Tool post | ||||
| Tool post type | | Horizontal 8-position | Horizontal 8-position | Horizontal 8-position |
| Tool size | | 25*25/Φ40 | 25*25/Φ50 | 25*25/Φ50 |
| Accuracy | ||||
| Machining accuracy | | IT6 | IT6-IT7 | IT6-IT7 |
| Surace roughness of workpiece machined | | Ra1.25 | Ra1.6 | Ra1.6 |
| Positioning accuracy | ||||
| X-axis | mm | 0.008 | 0.008 | 0.008 |
| Z-axis | mm | 0.008 | 0.008 | 0.008 |
| Positioning repeatability | ||||
| X-axis | mm | 0.004 | 0.005 | 0.005 |
| Z-axis | mm | 0.005 | 0.005 | 0.005 |
| Maximum load capacity | ||||
| Disks (including chuck and fixture} | kg | 300 | 350 | 400 |
| Machine weight | ||||
| Main unit | kg | 4500 | 6800 | 7300 |
| Overall dimension | ||||
| L×W×H | mm | 2000*1370*2275 | 2260*1780*2880 | 2260*1780*3060 |

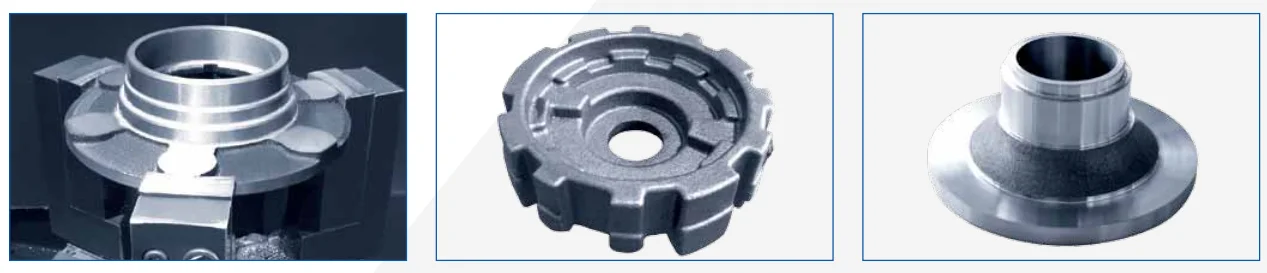

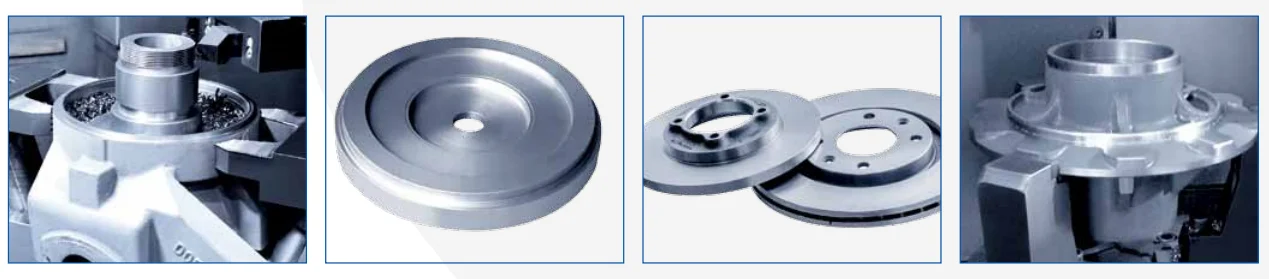

Industry application:

OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
